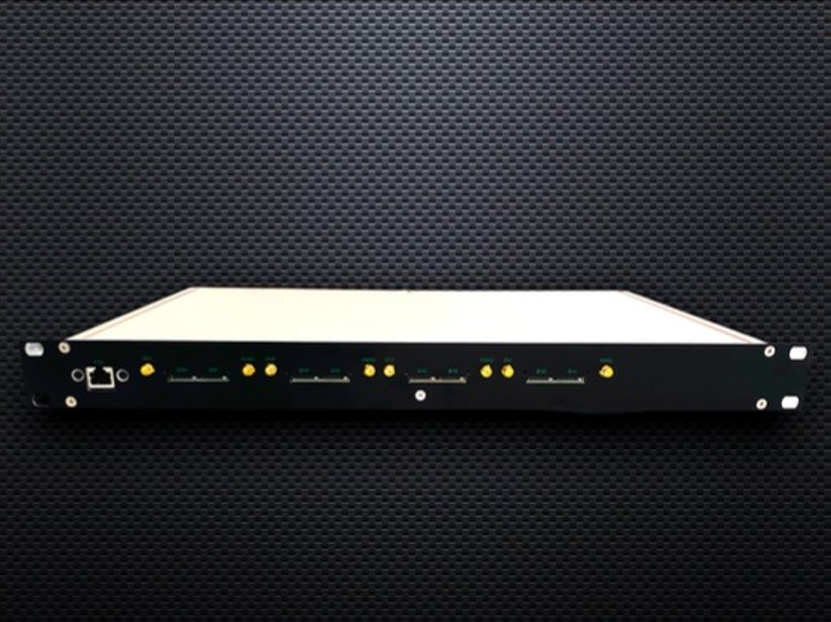

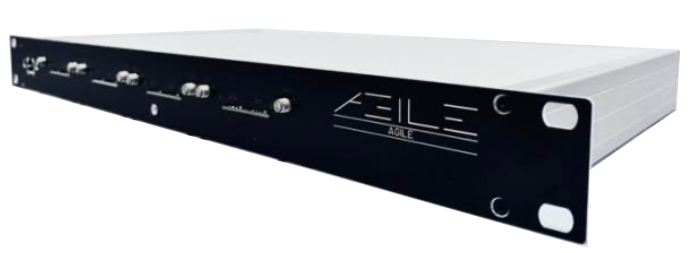

CORE RM
Powerful Bonded Multi-Channel Cellular Hub for Maximum Performance
Rackmounted Enterprise-Level Solution
The AGILE CORE RM series are rack-mounted IP-to-LTE gateways that integrate bonded multi-channel LTE, Wi-Fi, and optional Land Mobile Radio (LMR) capabilities. Designed for fixed or mobile telecom racks, they deliver data, voice, SMS, and fax via eight LTE channels, each supporting up to 150 Mbps downstream and 50 Mbps upstream. The CORE RM X1 uses internal SIMs, while the CORE RM X2 leverages the AGILE CORE Control system for virtual SIM management. Built for ease of use, it adapts to growing communication needs with leading-edge technology.
8 - LTE Channels
8 SIM Slots
1U 19-inch rackmount chassis
Advanced Connectivity
Data Rates per Channel
Uplink up to 50 Mbps
Downlink up to 150 Mbps
Powerful, Secure Wi-Fi
Powerful and secured Wi-Fi with a large effective range. Wi-Fi mesh is possible with multiple Mobile CORE systems deployed in a given territory.
CORE RM includes AGILE ROUTING, sophisticated software that manages cell tower handoffs as you travel, maximizing signal strength and automatically searching for the best throughput connection available. Use of bonded aggregation allows CORE RM users the ability to maintain session persistence even if one or more of the cell connections fail for any reason.
Optional LMR (Land Mobile Radio)
The optional LMR extension automatically detects trunked radio network outages and shifts transmissions to a secure LTE connection—no operator action required.
GPS tracking embedded inthe unit
Built-in GPS seamlessly allows real-time location monitoring without additional hardware, improving operational coordination, safety, and resource management.
CAPABILITIES
- lU 19 inch rack-mount design simplifies installation
- AC power/ DC power (optional)
- Passively cooled for a wide range of temperatures
- 8 LTE channels/ 8 SIM slots for each CORE RM
- LTE Cat 4 module optimized for M2M and loT applications
- Channel bonding and load balancing for high throughput
Scalability and Operations
- Eight cellular LTE radios onboard that can hold 8 SIM cards locally in the CORE RM SIM slots or virtually from an optional CORE Control 2 system installed at your datacenter.
- The optional CORE Control configures and checks in on all CORE systems. CORE Control provides the MMS feature and reduces maintenance and downtime while providing integrated system status reports.
- CORE RM systems automatically register with the optional CORE Control 1 server when turned on and are visible on the network for the entire duration. If CORE Control 2 is added appropriate remote SIM cards can be distributed per plan.
- CORE RM operates globally with all GSM carriers, no need to worry about which bands are supported. Add CORE Control 2 and the CORE RM will receive the correct SIM cards as needed. Fully mobile.
Download full factsheet
There is an AGILE CORE unit to fit any application
TWIN CORE
Completely wire free operations, whether you’re surface mining or sub-surface mining. Eliminate the challenges of sequential detonation!
Twin Core X5
Communications capability even in dead zones. LTE, Wi-Fi, MMS, SMS, Voice, Real-time Video, and GPS, all installed collectively in one Device.
Marine Core
Real-time analytics compiled, shared and reported back to command center. Remotely detonate with larger area covered.
